Active Directory Structure

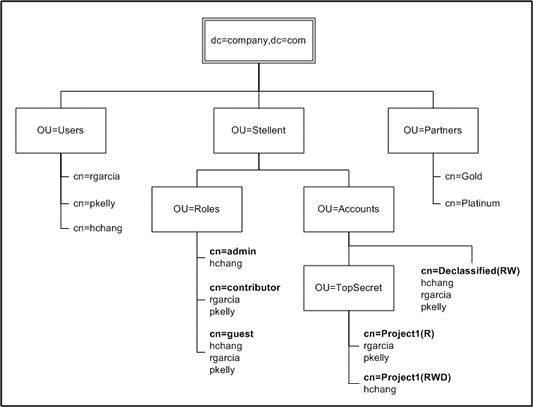

Active Directory organizes network objects in an LDAP-style hierarchical structure called a directory tree. The tree diagram in Figure 6-1 shows a typical Active Directory structure:

In this case, a user could be assigned to a group that has a DN (distinguished name) of:

cn=Project1,OU=TopSecret,OU=Accounts,OU=Stellent,dc=company,dc=com

where the group DN follows these LDAP conventions:


LDAP Abbreviation	LDAP Designation	Description
dc	domain component	Top-level unit that specifies the naming context.
OU	organizational unit	Typically represents a division, department, or other discrete business group. In an Oracle integration, roles and accounts are typically specified as OUs.
cn	common name	A typical lowest-level attribute in a DN, which identifies the unique name. For users, this could also be a “user ID” unit, or uid.
